MFP-A1-L08
Product description

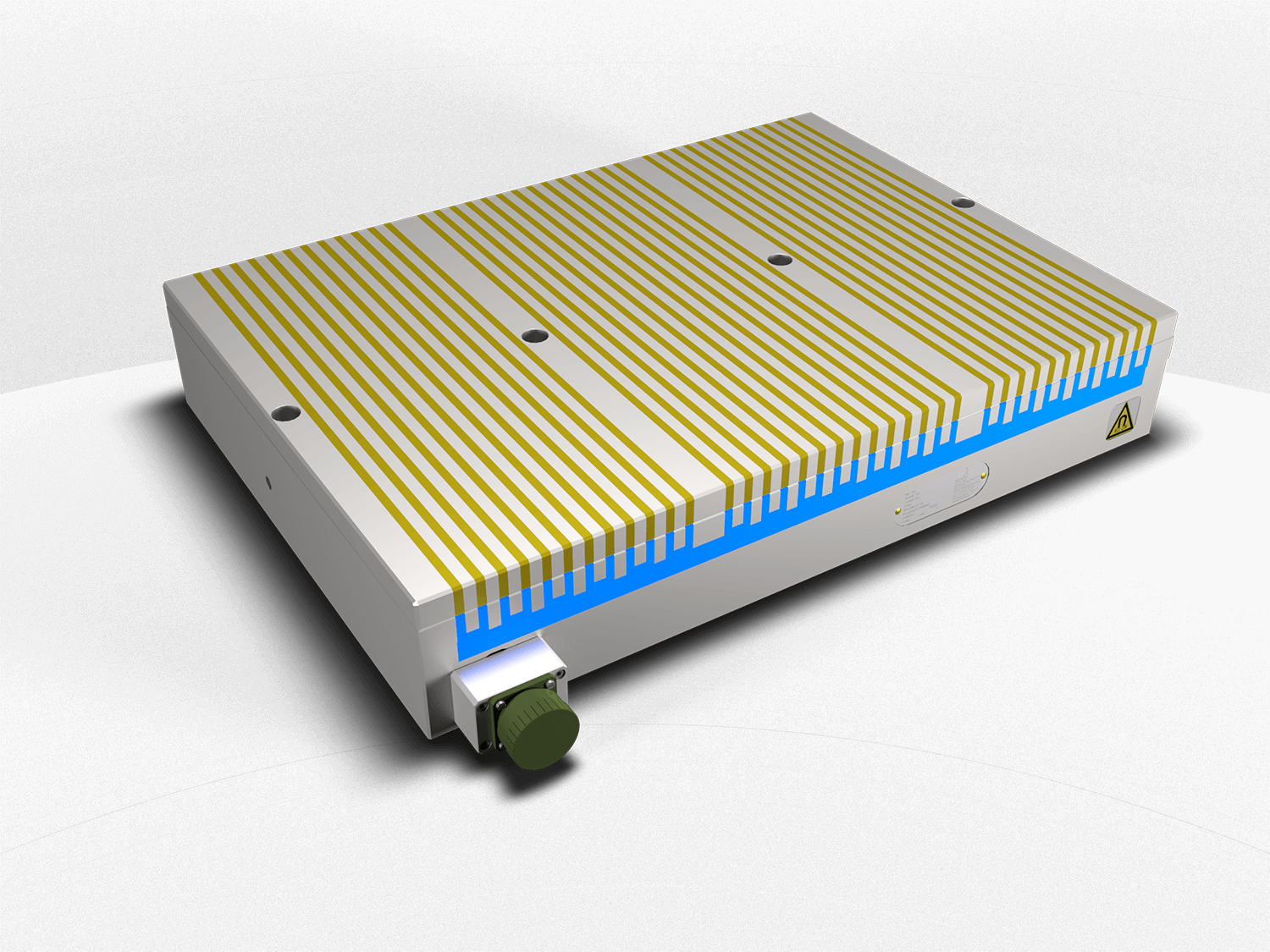

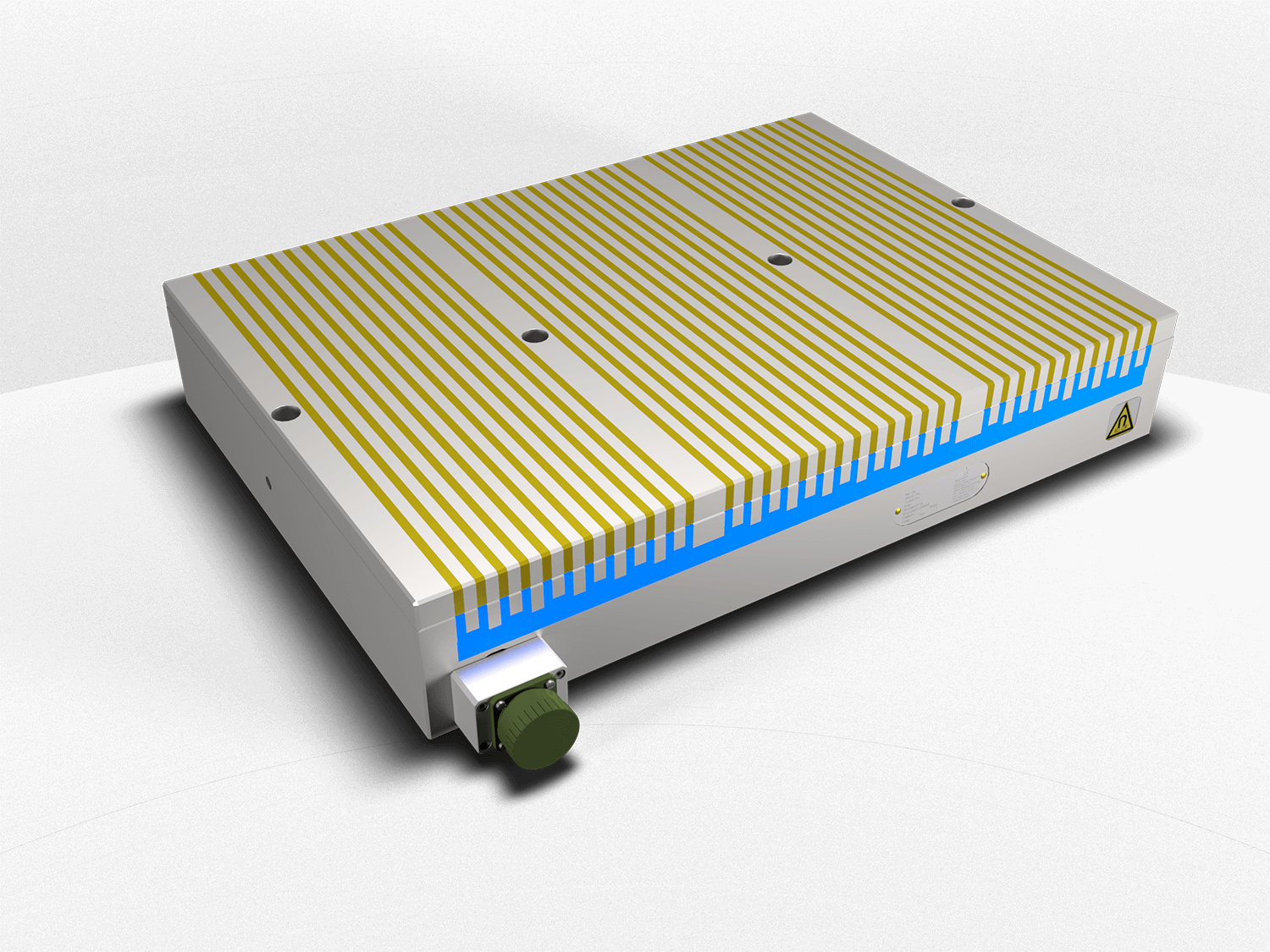

ELECTRO-PERMANENT CHUCK FOR REMOVAL THROUGH MILLING OF SMALL AND THIN-WALLED WORK-PIECES.
It is the only real solution on the market for milling small and thin parts, where other electro-permanent solutions show their limitations. The very fine pitch allows optimal flux control on low thicknesses, thus ensuring the best possible clamping force and the elimination of problems related to chip evacuation. The all-metal clamping surface provides stability, precision and durability; the top/upper plate is also replaceable, allowing easy repairs in case of accidental damage or special needs.
| MODELS | CODE | DIMENSIONS | WEIGHT[kg] | CLAMPING FORCE (N / cm2) | CONNECTION | NUMBER OF CHANNELS | ||
| B [mm] | L [mm] | H [mm] | ||||||
| MFP-A1-L08-030-030 | 1362023 | 320 | 320 | 86 | 60 | UP TO 120 | 4 pin | 1 |
| MFP-A1-L08-040-040 | 1362024 | 430 | 430 | 86 | 110 | UP TO 120 | 4 pin | 1 |
| MFP-A1-L08-030-015 | 1362028 | 320 | 150 | 86 | 35 | UP TO 120 | 4 pin | 1 |
| MFP-A1-L08-040-020 | 1361029 | 430 | 200 | 106 | 65 | UP TO 120 | 4 pin | 1 |
| MFP-A1-L08-050-030 | 1362030 | 300 | 500 | 106 | 115 | UP TO 120 | 4 pin | 1 |
| MFP-A1-L08-060-040 | 1362031 | 430 | 600 | 106 | 200 | UP TO 121 | 7 pin | 2 |
