PM62

Product description

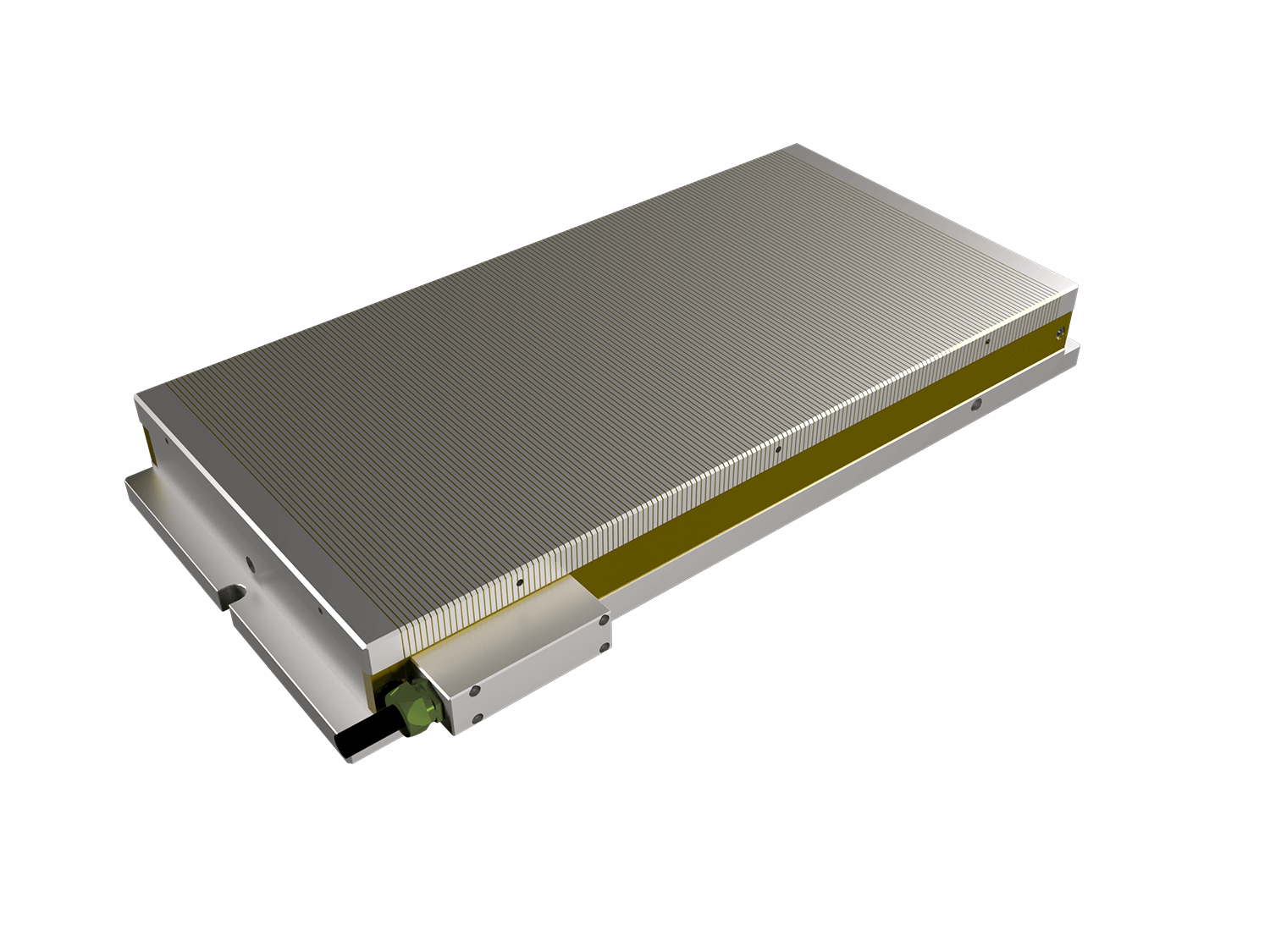

ELECTROPERMANENT CHUCK FOR GRINDING OPERATIONS FEATURING A NO RESIDUAL
DEMAG CYCLE AND AN ADDITIONAL UPPER PLATE OUT OF IRON AND BRASS.

The outstanding quality of this model lies in the upper plate, which is fixed on the magnetic chuck to ensure maximum rigidity. It is mainly used for high precision grinding and is able to clamp extremely well even very thin pieces thanks to its dense pole pitch ( over 5 mm). Not suitable for the machining of workpieces with thickness inferior to 2mm and dimensions smaller than 50x 50mm.

MODELDIMENSIONSWEIGHT[kg]MAXIMUM CLAMPING
FORCE  [N/cm2]
NUMBER OF CHANNELS
B [mm]L [mm]H [mm]
PM62.150301503008134701
PM62.200402004008135701
PM62.200452004508140701
PM62.200502005008151701
PM62.300503005008164701
PM62.300603006008191701
