PM80A
Product description

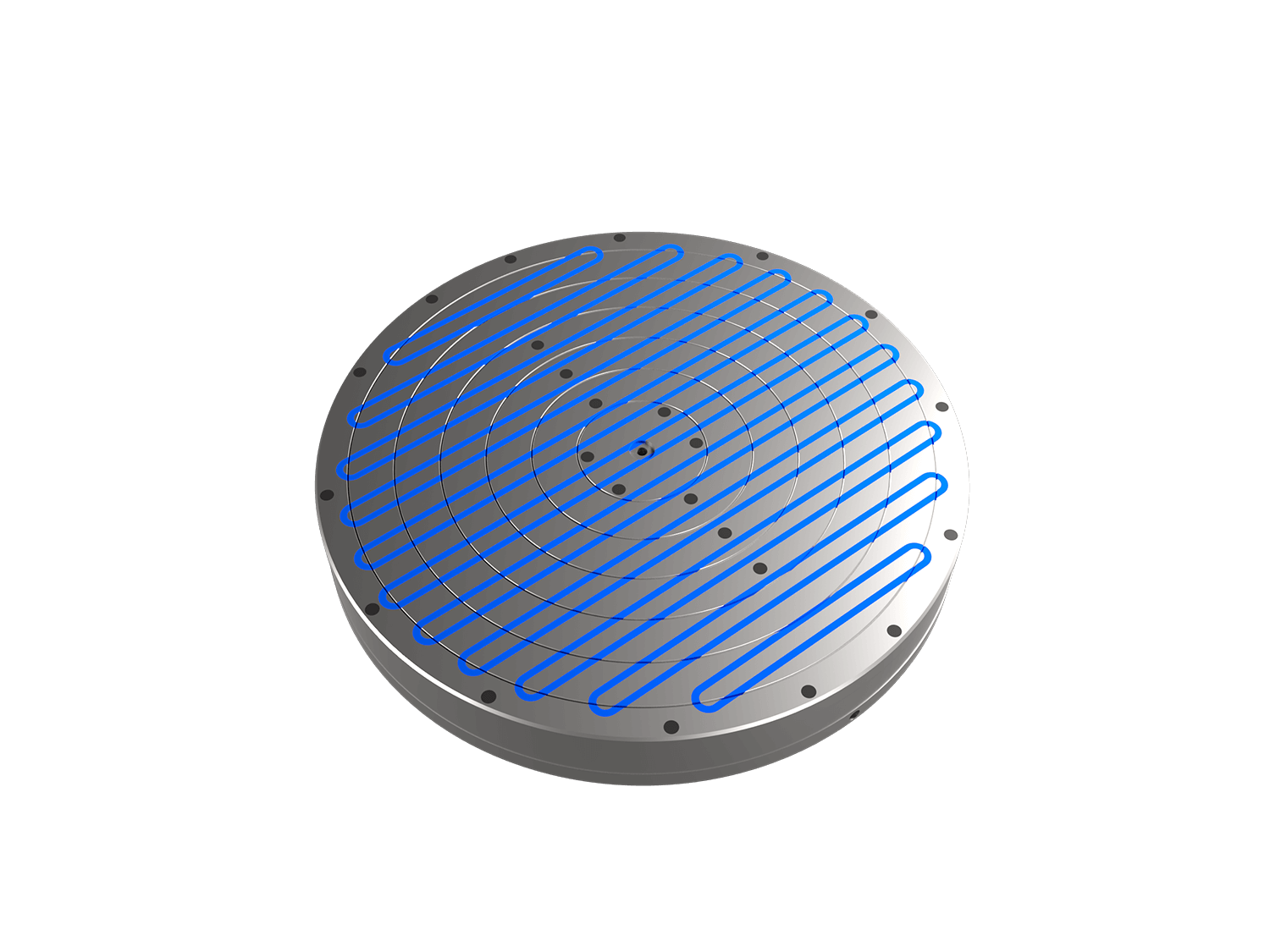

CLOSED-POLE ELECTRO-PERMANENT CHUCK FOR CIRCULAR GRINDING, FEATURING A NO RESIDUAL DEMAG CYCLE AND POLE PITCH WITH IRON AND RESIN STRUCTURE.
Recommended for medium-sized workpieces with normal thickness (over 10 mm) suitable for circular machines. Not suitable for the machining of workpieces with thickness inferior to 4mm and dimensions smaller than 50x 50mm.
| MODEL | DIMENSIONS | WEIGHT[kg] | MAXIMUM CLAMPING FORCE [N/cm2] | NUMBER OF CHANNELS | |
| ØD [mm] | H [mm] | ||||
| PM80.00300.A | 300 | 68 | 50 | 80 | 1 |
| PM80.00400.A | 400 | 68 | 88 | 80 | 1 |
| PM80.00500.A | 500 | 68 | 153 | 80 | 1 |
